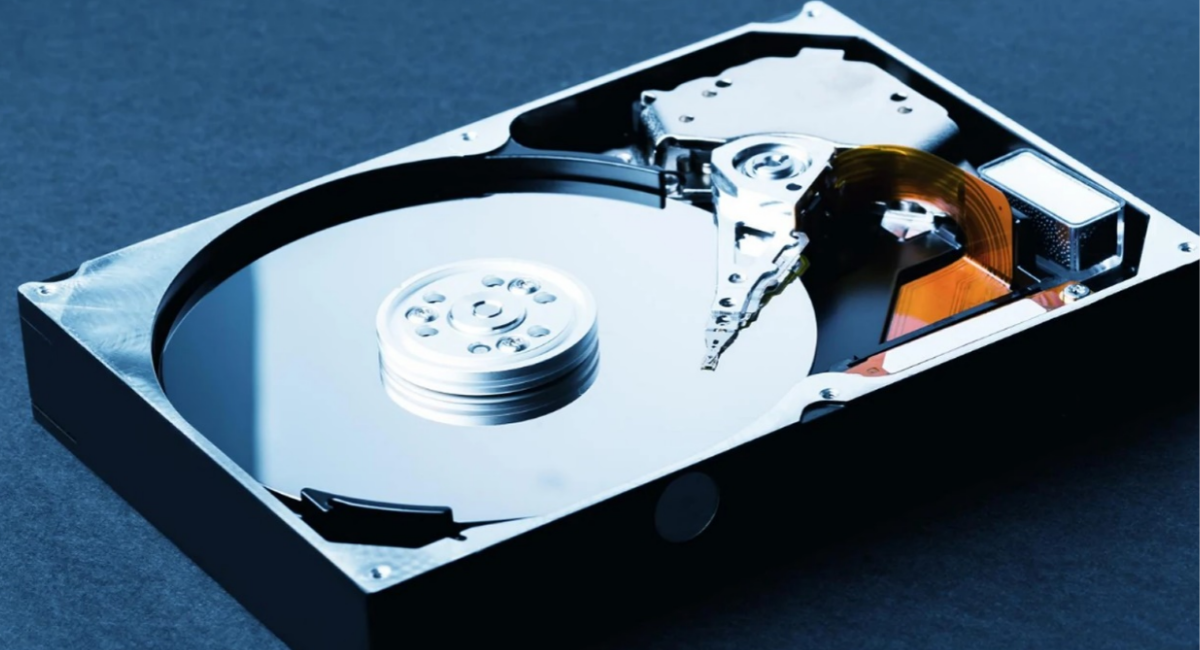

Hard Drive Not Detected? Steps to Fix and Recover Your Data
You plug in your hard drive as you normally do, but nothing happens. No icon, no notification, just silence where your files ought to be. It could be an external drive that was fine yesterday, or an internal one that vanished after a random reboot.
The first thing you’re probably thinking is the worst possible thing: is all of that gone for good? No, generally, usually, the drive is still there with your files intact, and something much smaller has gone wrong between it and your computer. This article covers what’s probably happening, why, the exact steps to get your HDD not recognized, and how to safely pull your data off if it doesn’t.
Part 1: What It Means When Your HDD Is Not Recognized
Usually, if your computer doesn’t see a hard drive, it shows up in one of a few ways.
Common Signs of an Unrecognized Drive:
- Windows will not recognize the drive and will show an error message.
- The drive shows up as “Unknown” or “Not Initialized” in Disk Management.
- File Explorer doesn’t show the drive.
- On Mac, the drive doesn’t mount, and Finder shows nothing where the icon should be.
It therefore doesn’t mean your data is entirely lost. Usually, it is not the drive itself that is the problem, but the connection between the drive and your operating system has broken down somewhere. That failure could be electrical, mechanical, or software on its own. The first step to a safe and effective fix is to know which category your problem falls into.
What Common Error Messages Actually Mean
Windows and macOS tend to show a specific error text that gives you a hint about what’s happening wrong, rather than just a generic failure.
- “USB Device Not Recognized” is usually a driver conflict or a USB port that’s going bad.
- “You have to format the disk before you can use it” means the disk has a corrupted file system, not necessarily lost data.
- “Disk Unknown, Not Initialized” in Disk Management usually indicates a damaged partition table.
- “The disk is write-protected” can be a hardware switch, a corrupted sector, or a permissions conflict.
Reading the exact wording of your error carefully can save time by narrowing down which fix to try first.
Part 2: Why HDDs Become Unreadable or Invisible
There are several reasons a drive may disappear, which usually fall into two categories: physical damage and logical errors.
Physical Damage Causes
- Damaged enclosure or worn-out connectors.
- Cause internal read/write head failure.
- A dying or seized motor.
- Warning signs could be clicking, grinding, or repetitive spinning sounds.
Logical Error Causes
- Damaged partition tables or corrupted file systems.
- Outdated or incompatible device drivers.
- Incorrect drive letter assignments in Windows
- File transfers that can break internal structures if power is interrupted.
- Malware infections or incorrect removal of external disks.
- A bad port or a loose USB cable on a perfectly good drive.
Identifying whether your issue is physical or logical will determine which fix to try first.
Part 3: When You Should Take Action Immediately
Not all unknown driving situations are emergencies, but some are.
Stop Immediately If You Notice:
- Weird noises from the drive, like clicking, buzzing, or grinding.
- The drive has been dropped recently, exposed to liquid, or experienced a power surge.
- The drive keeps cycling up and down and does not mount.
If you continue using a drive that is physically failing, you could lose data permanently in minutes. If this is the case, your best option is to use a professional data recovery service, as attempting to access the drive yourself could make things worse.
It’s Safer to Troubleshoot Yourself if:
- There are no strange sounds or physical warning signs.
- The drive was working fine until recently; it just disappeared.
If you’re in this second case, you likely have time to try software-based fixes first. Just be sure not to write any new data to the drive while troubleshooting, as this can overwrite recoverable files.
Part 4: How to Fix and Recover Data from an Unrecognized HDD
Before you begin any fixes, do not save any new data to the affected drive—the risks of overwriting files that could otherwise be recovered. If the drive is physically damaged, with unusual noises or no spinning at all, go directly to professional recovery help. For all other cases, the logical issues that cause most detection problems, the following steps should help you fix hard drive not showing in Windows and get your files back safely.
Fix 1: Check Basic Hardware Connections
The simplest explanation first: A surprisingly large number of detection failures are caused by loose or damaged connections.
- If you’re using an external HDD, unplug it and try a different USB port on your computer.
- Ports can wear out over time, especially if they are used frequently for charging or file transfer.
- Try another USB cable as well; damaged cables often look OK but do not transmit data correctly.
- If it’s an internal drive, shut down your computer completely and ensure the SATA and power cables are securely connected.
- Try the drive on another computer, if possible, to rule out issues with your original system.
This one step will fix a large percentage of external HDD not detected recovery cases without the need for any software at all.
Fix 2: Check Disk Management and Assign a Drive Letter
If the hardware checks out OK, then the next step is to look inside Windows itself.
- Right-click on the Start menu and select Disk Management to open the built-in disk utility.
- Even if you don’t see your drive in File Explorer, you can still find it in the list.
- Sometimes Windows can see a drive but doesn’t assign it a drive letter, so you can’t see it anywhere else.
- If you see the drive listed but it does not have a letter, right-click it and select “Change Drive Letter and Paths.”
- Assign a new, unused letter, then verify that the drive is accessible.
- If the drive shows up as “Unallocated” or “RAW”, don’t format it yet, as this will erase the existing data.
No. Instead, run recovery software before you change the drive’s structure.
Fix 3: Update or Reinstall the Disk Driver
Very often, the cause of a healthy drive disappearing from Windows with no hardware fault at all is outdated or corrupted drivers.
- To do this, right-click the Start menu and select Device Manager from the list.
- Expand the “Disk drives” section and locate your drive, which may be displayed with a yellow warning icon.
- Right-click the drive, click Update driver, and then click Search automatically for drivers.
- If Windows can’t find an update, try removing the driver altogether.
- Right-click the drive and select “Uninstall device.” Restart your PC, and Windows will reinstall it automatically.
This process usually fixes detection issues caused by driver corruption or a recent Windows update conflict. If the drive still isn’t showing up after that, move to dedicated recovery software.
Fix 4: Use Professional Recovery Software for Logical Failures
If a drive appears as RAW, unallocated, or won’t open even though it’s detected, you need dedicated recovery software. Manually attempting repairs at this stage risks permanent data loss if something goes wrong.
- This type of unrecognized HDD issue is exactly what 4DDiG Hard Drive Data Recovery is designed to handle, helping you recover data from unrecognized HDDs.
- It scans drives that Windows can’t normally read.
- It does this by working with the drive’s raw sectors, completely ignoring the damaged file system.
- In this way, it can find and recover files even if the drive’s structure has been damaged or lost.
Below is a step-by-step guide to using it safely.
4DDiG Step-by-Step Guide
- Download and install 4DDiG Data Recovery on a working computer, not on the damaged drive.
- Use a good cable and port to connect your Unrecognized HDD to the computer.

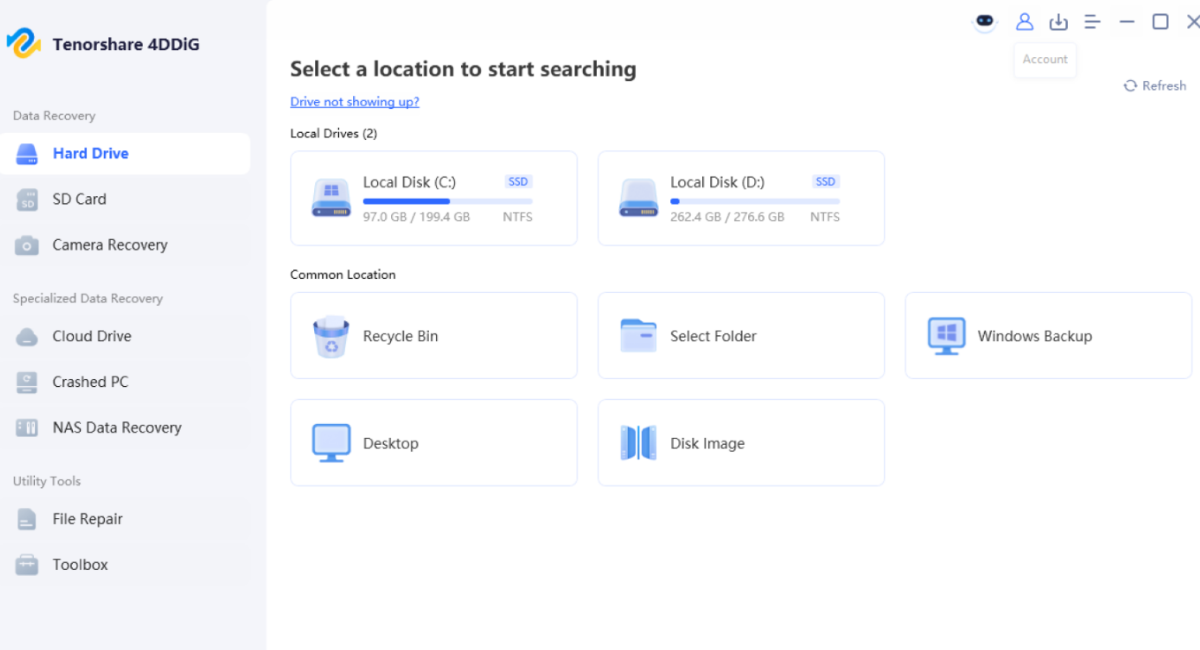

- Launch 4DDiG and choose the problematic drive from the detected disks.

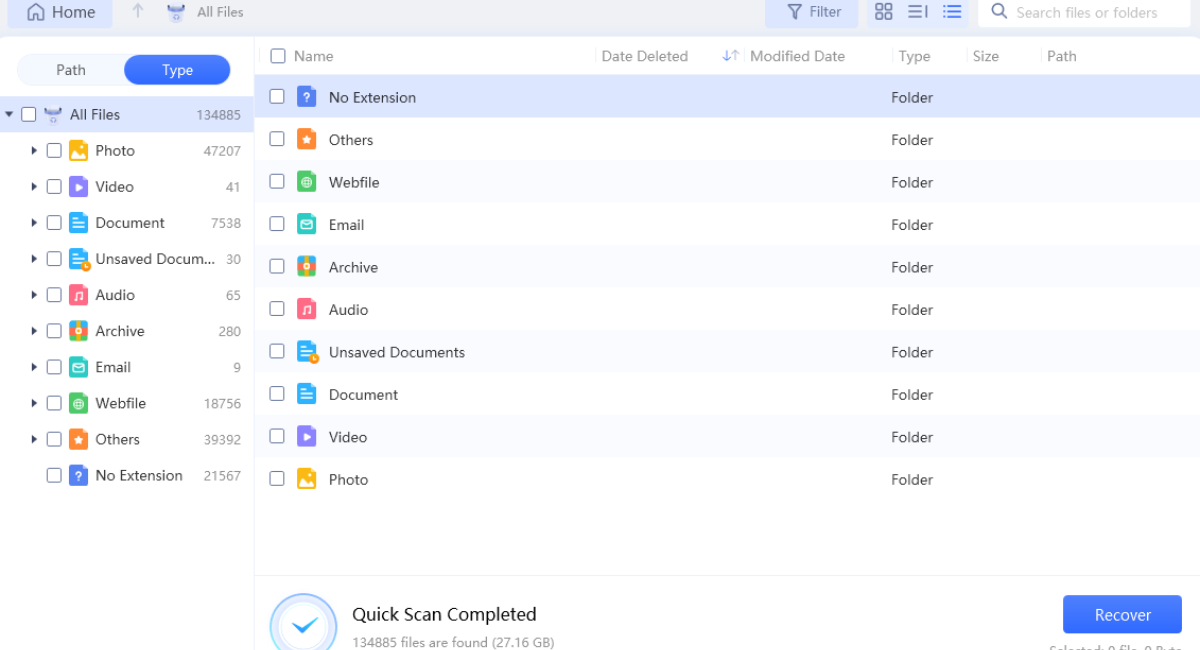

- Click “Scan” to start analyzing the drive for recoverable files and folders.

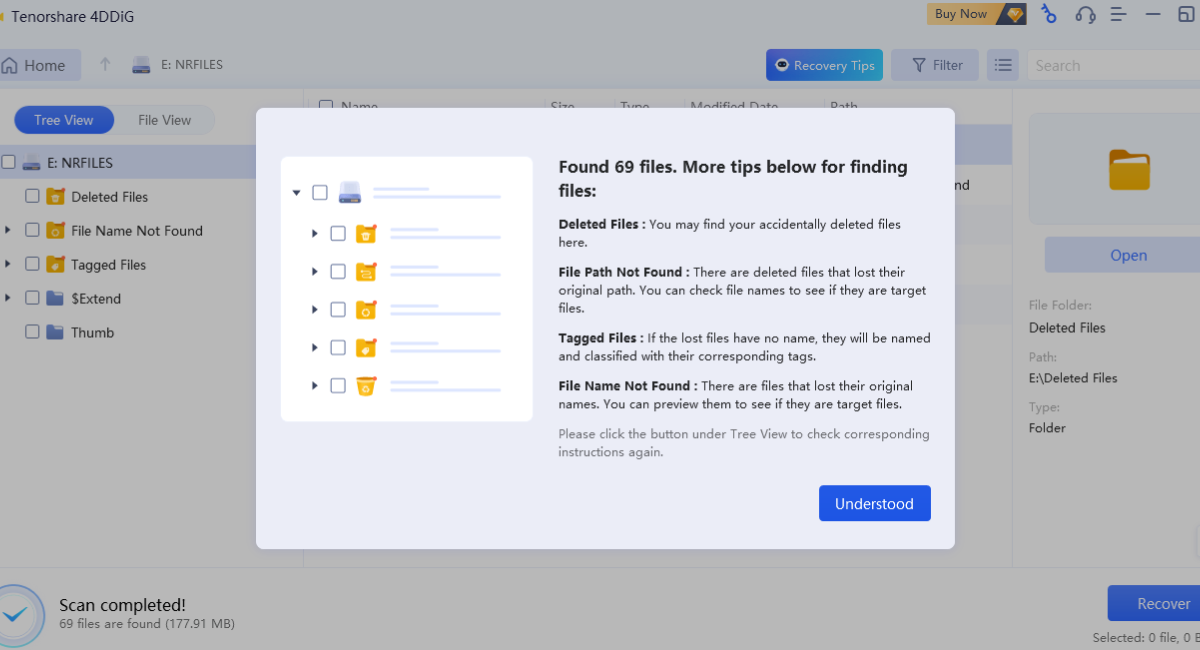

- When it’s done, preview the results and make sure your important files are safe.

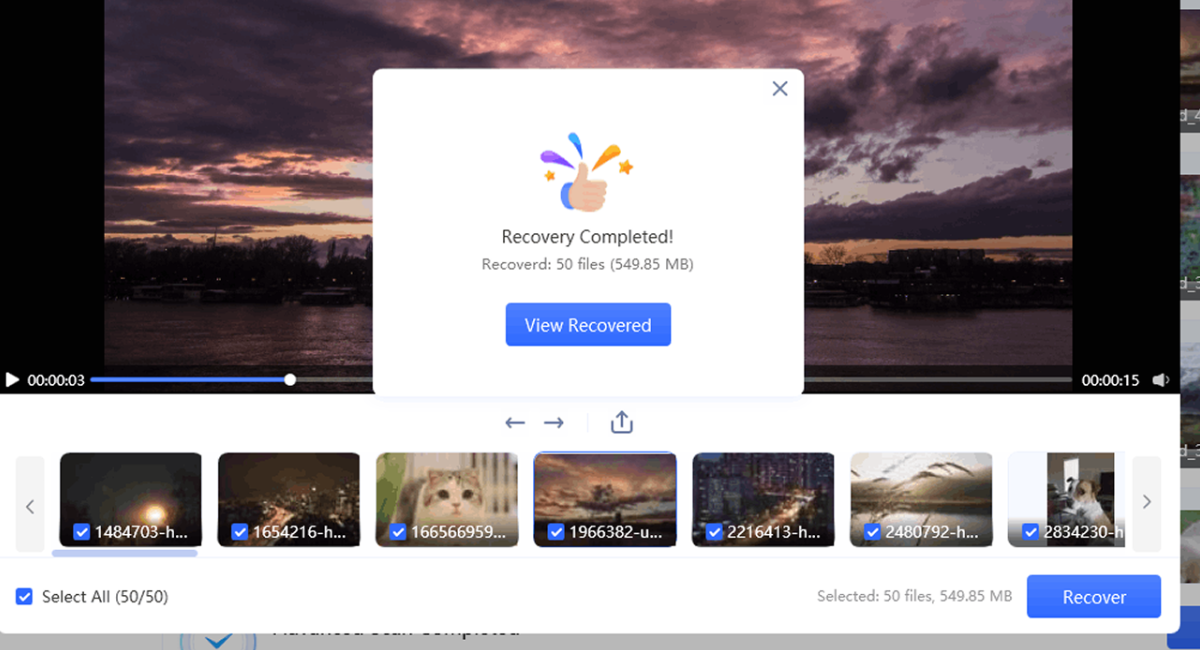

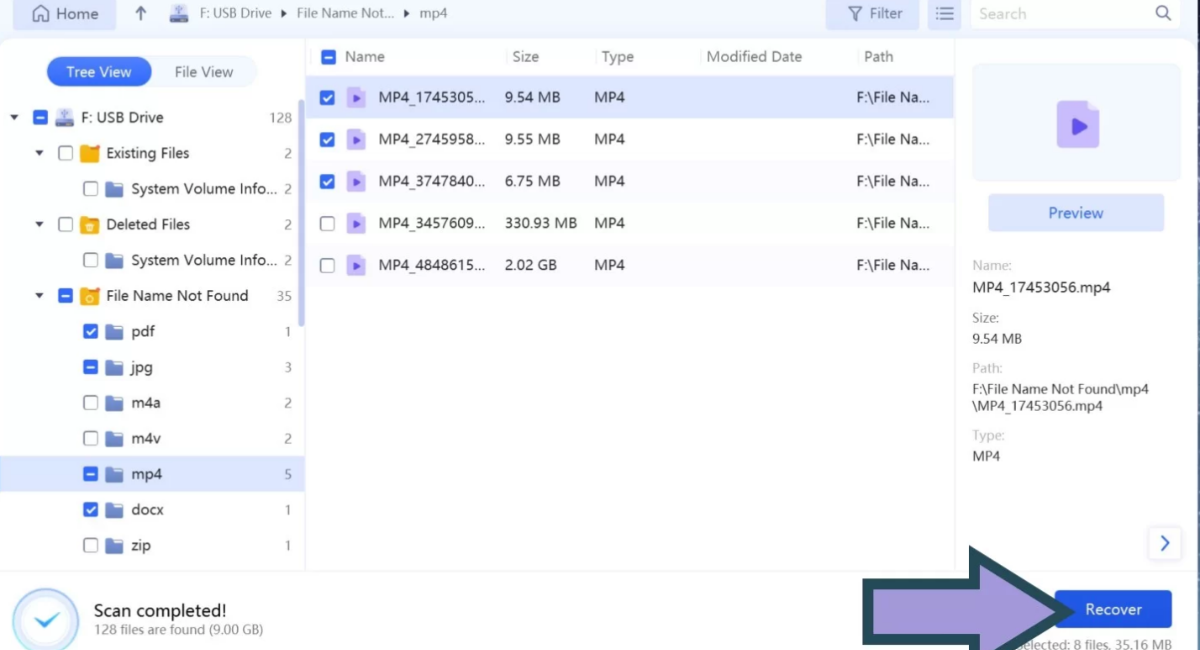

- Select the files you need and save them to another good drive.
Fix 4: Run a Deep Scan and Recover Data Safely
Sometimes the quick scan comes back, and your file isn’t there. That doesn’t mean it’s gone; it usually means the quick scan didn’t go deep enough. The deep scan scans the entire drive sector by sector, rather than trusting. Whatever is left of the file system, which is exactly why it works on drives that have been formatted or badly corrupted. The trade-off is time. A large drive can take hours to complete, so start it and walk away instead of watching the progress bar.
4DDiG Step-by-Step Guide:

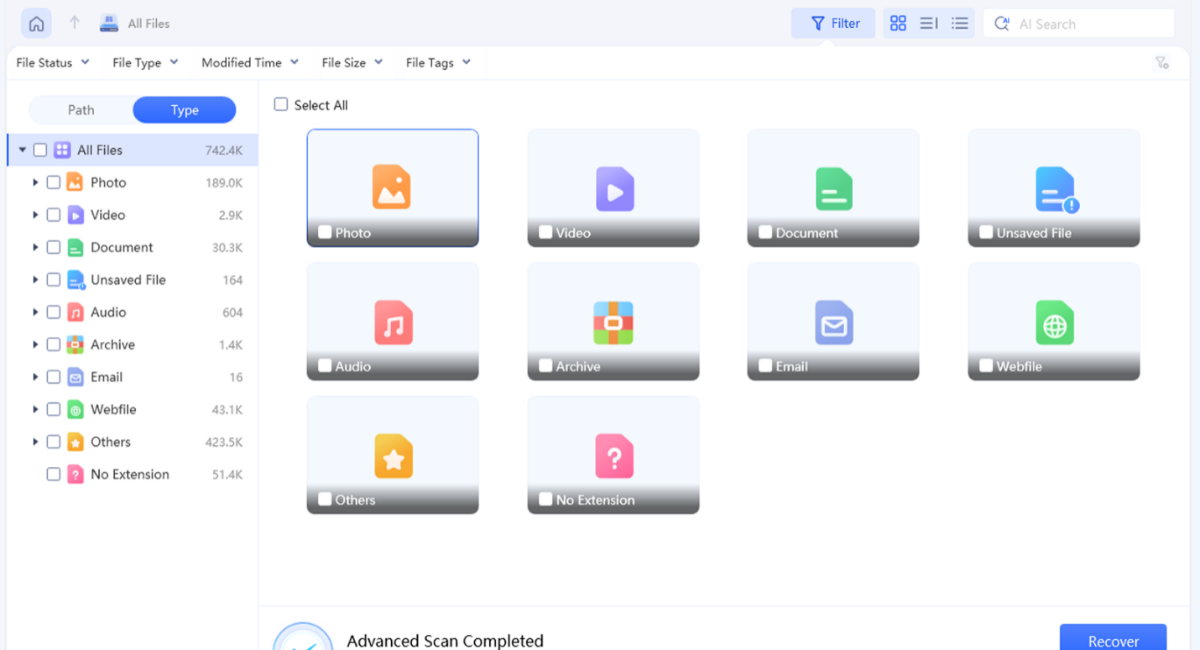

- Scan fast and pick either ‘Deep Scan’ or ‘All-Around Recovery’ mode.
- Allow the scan to complete without disconnecting the drive or stopping the program early.
- Narrow results down to documents, photos, or videos using the file type filters.
- Preview recovered items carefully before choosing which to restore.

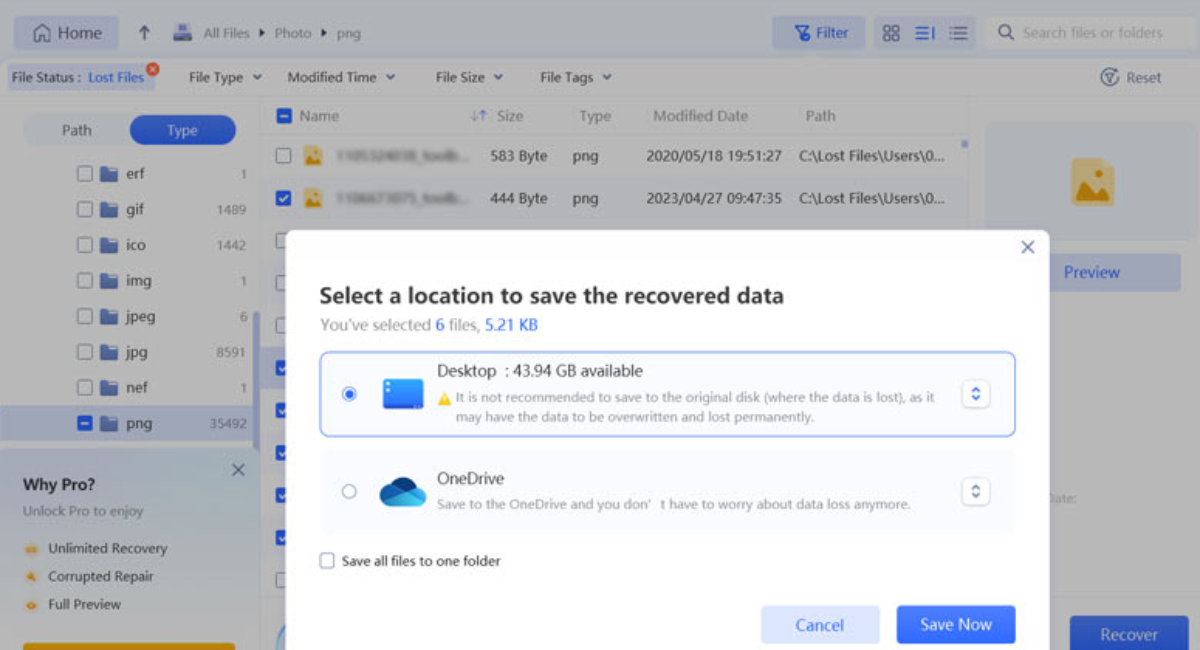

- Never restore recovered files to the original drive; always restore to a different drive.
Once you have safely retrieved your files, you can then decide what to do with the unrecognized drive (repair/reformat/replace).
Part 5: How to Prevent HDD Recognition Issues in the Future
One who has been through recovery once usually does not care to go through it again.
- Always eject external drives in your OS before unplugging the cable. One of the quickest ways to corrupt a drive is to pull it out mid-transfer.
- Update the storage drivers. Older ones create more disappearing-drive tickets than people think.
- Don’t go cheap on the USB cable or enclosure. A flaky cable will give you the same headache again.
- Then, follow the 3-2-1 backup rule: Have three copies of your data, on two different types of media, one of them offsite or in the cloud.
- Run CHKDSK now and then. It catches little file system errors before they turn into a drive that won’t mount at all.
- Protect external drives from heat, moisture, and falls. HDDs have moving parts, and moving parts do not forgive rough treatment.
- If a drive is more than five years old, don’t wait for it to fail. Change it while you can in your own time.
Final Words:
It is a bit like the end of the world for about five minutes when a drive disappears from your computer, until you realize that most of the time it is not. Before you think something is broken forever, try the easy things first: a different cable, a different port, a look inside Disk Management. If that fails, employ recovery software to do the heavy lifting instead of trying to guess your way through repairs on a drive with files you really care about.
That’s exactly what 4DDiG Data Recovery is designed to do: recover files from drives that Windows has already given up on. The clicking and grinding noises are really the only things that should give you pause and prompt you to call in a professional instead of attempting this on your own. Usually, a little patience can fix everything else.
Frequently Asked Questions
i. Is it possible to recover a drive that is not showing up?
Yeah, mostly. A missing drive letter, corrupt file system, or driver conflict does not delete your files. Usually, the data remains on the disk itself until something overwrites it.
ii. Is it safe to run CHKDSK on a drive that is not recognized?
Only if you are sure the problem is logical, not physical. If the drive is failing, running CHKDSK can make things worse. Scan the drive for recoverable files first.
iii. Why does my external HDD work on one computer but not the other?
That is usually indicative of a driver, port, or USB controller issue on the computer that does not see it, not the drive itself.
